visualizing uncertainty

We often have some measure of uncertainty in our data—a forecast, prediction or range of possible values. A common challenge is how to visualize that uncertainty and help our audience understand the implications. In today’s post, I’ll use a real-world example to illustrate one approach and share tactics for creating in Excel.

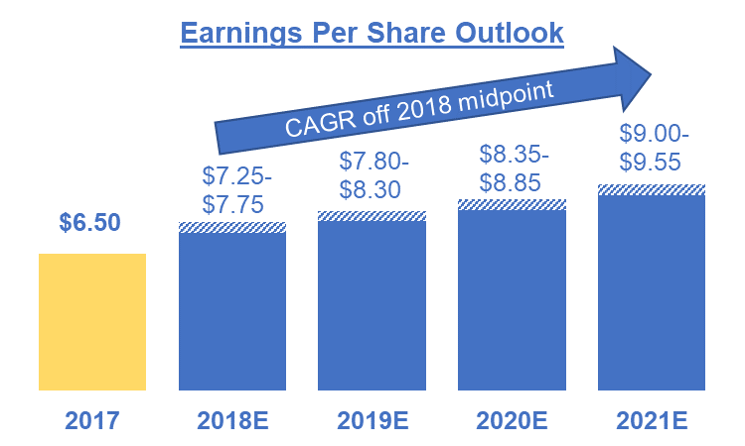

The client’s original visual looked similar to the one below. It shows 2017 earnings per share (EPS) and the forecast outlook for the next four years. The client used a CAGR to forecast a range of possible EPS values from 2018 - 2021.




At first glance, it wasn’t obvious that the blue bars represented a forecast (even with the x-axis labeling of “E” for expected). The first yellow bar represents the 2017 actual EPS and next four blue bars are the forecast for 2018 - 2021 where the solid section represents the midpoint and the data labels is the uncertain piece—the range of projected values.

I made a few design changes to make the graph a little easier to interpret. I first changed the bars to lines and used a dotted line for 2018 - 2021 with unfilled data markers to help visually reinforce the uncertainty.




In Excel, there are two potential ways to achieve this formatting. A brute-force approach is to use a single data series and format each individual data point as a dotted line. Another approach is to graph two separate data series, one as a solid point or line and the second as a dashed line or unfilled circle, with a point of overlap to make the lines connect. You can read more detail about these two approaches in this prior post.

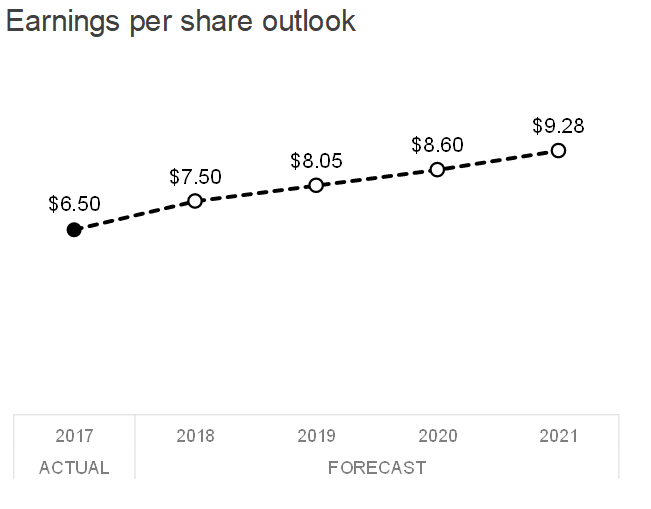

We often face the decision of preserving the y-axis vs. labeling data directly. I’ve done the latter in the visual below. One consideration in this decision point is the level of specificity your audience needs: are the actual values important? Or is the overall shape of the data more important? You can read more about these considerations in this prior post.




Next, let’s revisit how to show the range of forecast values. The original visual is shown again below where the forecast EPS values are represented by the data labels on top of the bars.

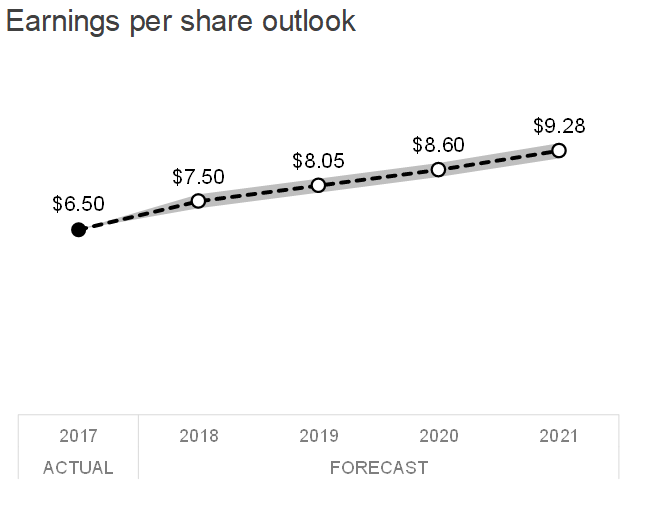

Rather than leave the audience with the highly taxing processing of reading these values, we can aid interpretation by instead depicting the forecast as a shaded range around the point estimate. This keeps the emphasis on the midpoints, while reducing clutter and eliminating the additional work the audience has to do. If the specific forecast values are important to the audience, we’ll deal with that momentarily.




The brute-force Excel method to adding this grey band requires a little math, graphing a second data series as a stacked bar and then formatting the stacked bar so that the bottom section renders white and the top section grey. You can download the accompanying Excel file to see how I accomplished this.




But the visual is not yet complete. We should take the opportunity to add value to this data by telling the intended audience what they should know. Let’s assume this is a positive story where the outlook from the original base year (2016) has been extended to 2018. I might add explanatory text, paired with strategic use of color (I chose green to depict positivity) to focus attention on the relevant points of the data. If specific forecast EPS values are important for a given year, I could include them for context in the text. For a very technical audience, I might include even more detail with the statistics around the forecast. Just a reminder to always design with the audience’s needs in mind!






Are you aware of other methods to achieve this effect? Have you seen other examples of uncertainty depicted effectively or tips you’d like to share? Leave a comment with your thoughts!


Elizabeth Ricks is a Data Visualization Designer on the Storytelling with Data team. She has a passion for helping her audience understand the ’so-what?’ as concisely as possible. Connect with Elizabeth on LinkedIn or Twitter.
